DJI DOCK - M30T
DJI DOCK - Matrice 30T RTK
CHF0.00
Tax included
CAMERA
| Video Resolution | 4K UHD |
|---|---|
| Video Compression | H.264 |
| Sensor | 1/2" CMOS, Effective Pixels: 48MP, 1/2" CMOS, Effective pixels: 12M |
| ISO | from 100 to 25600 (Video), from 100 to 25600 (picture) |
| Image format | JPEG, R-JPEG |
| Video format | MP4 |
| Image max. resolution | 3840 x 2160, 8000 x 6000 |
| Exposure modes | Auto, Manual |
| Operation modes | Capture / Record / Playback |
| Digital Zoom | Optical zoom from x5 to x16 + digital zoom up to x200 |
SPECIFICATIONS
| Warranty | 2 Years |
|---|
ENVIRONMENTAL
| Working Temperature (°C) | From -20 to 50 |
|---|---|
| Weather Proof IP Rating | 55 |
THERMAL CAMERA
| Thermal resolution | 640 x 512 |
|---|---|
| Sensor | Uncooled VOx Microbolometer |
| Focal | DFOV: 61° Format Equivalent: 40 mm Aperture: f/1.0 Focus: 5 m to ∞ |
| Pixel Pitch | 12 μm |
| Photo format | R-JPEG |
| Video format | MP4 |
| Temperature alert | Yes |
FEATURES
| Product description |

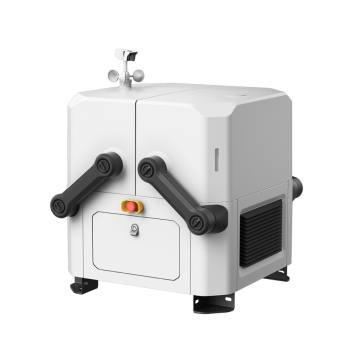

DJI Dock is an autonomous take-off and landing tool for DJI Matrice 30 series professional drones (DJI M30 and DJI M30T).
Resistant and reliable, the DJI Dock enables drones to operate 24/7 in a wide variety of environments. It also enables drone storage and recharging. Fully integrated with the DJI Matrice 30 series, the DJI Dock is compatible with FlighHub 2 and automatic mission planning.
It recharges drones in 25 minutes thanks to its internal battery cooling system. It enables them to operate within a 7 km zone around the DJI Dock, in temperatures ranging from -35 to +50°C. As such, it is IP55 certified. The DJI Dock integrates a wide-angle security camera, a weather station and an RTK module for optimum precision.
|
|---|---|
| Contents of the package |
DJI DOCK - Matrice 30T
Includes :
- DJI DOCK docking station
- Matrice 30 T RTK drone
- DJI FLIGHT HUB software
Not included:
- Customer visit + Installation + Calibration and set-up of flight plans (2 to 3 days)
- SORA (Special Operations Risk Assessment) FOCA authorization
- Training for teleoperator and/or site safety manager.
(Price provided on a case-by-case basis depending on installation location)
|
DRONE
| Drone Type | Matrice 30T RTK |
|---|---|
| Dimensions unfolded (mm) | 470 × 585 × 215 mm |
| Dimensions folded (mm) | 365 × 215 × 195 mm |
| Batteries number | 1 |
| Navigation | BeiDou, GPS (L1/L2), Galileo (E1/E2), Galileo (E1/E5a), Glonass (L1/L2) |
| Flight control | Custom built-in |
| Remote controller | RC PLUS |
| Remote video output ports | HDMI |
| Maximum distance | 7 km |
| Apps | DJI Pilot 2 (Android & iOS) |
| Usage | Public Safety, Safety, Security and Inspection, Thermal and RGB imaging |
| Max. altitude sea level (m) | 6000 |
| Max flight time (minutes) | 41 |
| Max. speed (km/h) | 82 |
| Max. ascent speed (km/h) | 20 |
| Max. descent speed (km/h) | 25 |
| Weight incl. batteries and propellers (kg) | 4 |
| Recommanded Use Cases | All weather flight, Enhanced inspection, Fire safety, General inspection, HSE RGB + Security (night), HSE Thermal + Security (long range zoom), Security (day), Thermal inspection |
PAYLOAD
| Camera stabilisation | 3-axis (pitch, roll, yaw) |
|---|
DOCKING STATION
| Live RTSP Feed | HD 720p |
|---|---|
| Default Radio Coverage | 7km radius |
| IP | 55 |
| Weight | 105kg |
| Operating temperature | -35 à 50°C |
| Heating and air conditioning | yes |
SOFTWARE
| Software compatibility | Genetec, HIK Central, IPS, Milestone, Seetec |
|---|---|
| DJI software |
DJI FlightHub 2 is a complete cloud-based software solution designed to manage and operate DJI Enterprise drones and process the data they have created.
FlightHub 2 provides a secure platform for all professionals equipped with a fleet of DJI drones. A true command center, the solution enables you to organize, plan and monitor the smooth running of your missions.
It's through this tool that you'll be able to correlate satellite maps and drone-captured images. You'll be able to create infrared or RGB orthomosaics thanks to the intelligent 2.5D Base Map and One-Tap Panorama Sync functions. Live Annotations allows the FlightHub 2 crew member to annotate a point on a map for the pilot to navigate to.
Multiple devices such as smartphones and tablets can be connected simultaneously to DJI FlightHub 2, giving them access to live, latency-free video feedback from the drone.
DJI FlighHub 2 is compatible with DJI Matrice 30 series drones (DJI M30 and DJI M30T), the DJI RC Plus remote control and the DJI Doc
|
