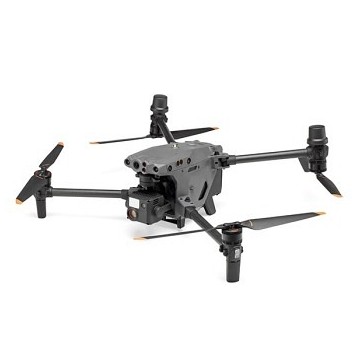

MATRICE 30 RTK
DJI Matrice 30 RTK
CHF7,500.00
Tax included
ENVIRONMENTAL
| Working Temperature (°C) | From -20 to 50 |
|---|---|
| Weather Proof IP Rating | 55 |
DRONE
| Max. ascent speed (km/h) | 21.6 |
|---|---|
| Max. descent speed (km/h) | 18 |
| Gimbal setup | Single bottom bracket |
| Usage | 4K Video, Film production – interchangeable lens, big sensor, HD photography, Mapping and Surveying – mechanical shutter, Precise aerial inspection from long distances, Public Safety and Industrial inspections, Thermal and RGB imaging |
| Drone Type | Quadcopter |
| Dimensions unfolded (mm) | 470 × 585 × 215 mm |
| Dimensions folded (mm) | 365 × 215 × 195 mm |
| Batteries model | TB30 |
| Batteries number | 2 |
| Battery capacity / Battery weight | 5880 mh / 695 gr |
| Navigation | GPS (L1/L2), Galileo (E1/E2), Glonass (L1/L2), RTK |
| Redundancy & Sensors | 2 propulsions system, Downward: 2 cameras + 2 ultrasonic sensors + LED, Dual Barometers, Dual IMU, Dual batteries, Dual frequencies, Dual frequencies band switching, Forward vision: 2 stereoscopic cameras, Upward: IR sensor + LED |
| Flight control | Custom built-in |
| Remote controller | RC PLUS |
| Remote video output ports | HDMI, SDI, USB |
| Multi user/aircraft capability | Master and Slave |
| Operating frequency | 2.4 GHz (CE <20 dBm), 5.7-5.8 GHz (CE <14 dBm) |
| Maximum distance | 15 Km. |
| Propeller model | 1671, 1676 |
| Obstacle avoidance | Front : 0.6 - 38m, Top /Bottom/Back/Side : 0.5-33 m |
| Apps | DJI Flight Hub 2, DJI Pilot 2 (Android & iOS) |
| Motor model | 3511 |
| Max. altitude sea level (m) | 7000 |
| Max. wind- descent speed (km/h) | 18 |
| Max flight time (minutes) | 42 |
| Max. speed (km/h) | 82.8 |
| Max. take-off weight (kg) | 4 |
| Weight incl. batteries and propellers (kg) | 3.8 |
PAYLOAD
| Camera stabilisation | 3-axis (pitch, roll, yaw) |
|---|---|
| Angular vibration range in ° | 0.01 |
| Controllable range | Panning: ±90°. Tilt: -120° to +45 |
| Mechanical range | Panning: ±105°. Tilt: -135° to +60 Roll: ±45°. |
CAMERA
| Video Frame Rate | 4K UHD@30fps |
|---|---|
| Video Resolution | 4K UHD |
| Sensor | 1/2" CMOS, Effective Pixels: 48MP, 1/2" CMOS, Effective pixels: 12M |
| Lens | DFOV: 84° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞, Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to ∞ |
| Image max. resolution | Zoom : 8K |
| Digital Zoom | Optical zoom from x5 to x16 + digital zoom up to x200 |
TRANSMISSION
| Video transmission | OcuSync 3 Enterprise |
|---|
THERMAL CAMERA
| Temperature alert | No |
|---|
FEATURES
| Product description |
Designed for use by professionals, especially in the fields of security and inspection, the DJI Matrice 30 is the result of the symbiosis between the Matrice 300 and Mavic 2 Enterprise Advanced ranges! It combines what professionals need to succeed in their missions: reliability and compactness.
The DJI M30 incorporates three sensors: a 12 megapixel wide-angle camera, a 48 megapixel camera with 16x zoom and a laser rangefinder for distance estimation.
The DJI Matrice 30 will be able to fly for almost 41 minutes thanks to its two TB30 batteries. They can be changed while the drone is in use and have their own heating system. The DJI M30 has redundancy of its main components (IMu, barometer, RTK antenna, GPS module and compass), ensuring you a reliability to any test. You can also count on optimal obstacle detection.
Equipped with the new DJI RC Plus radio control, the DJI Matrice 30 has a theoretical range of 15 km. The piloting is done via this ultra bright 7-inch screen connected to the DJI Pilot 2 application. This DJI M30 comes with two TB30 batteries, a BS60 charging station and a wheeled carrying case
(TB30 batteries not inclus)
|
|---|---|
| Contents of the package |
(TB30 batteries not inclus) |
